Oversize Load Signs, Flags & Lighting Requirements

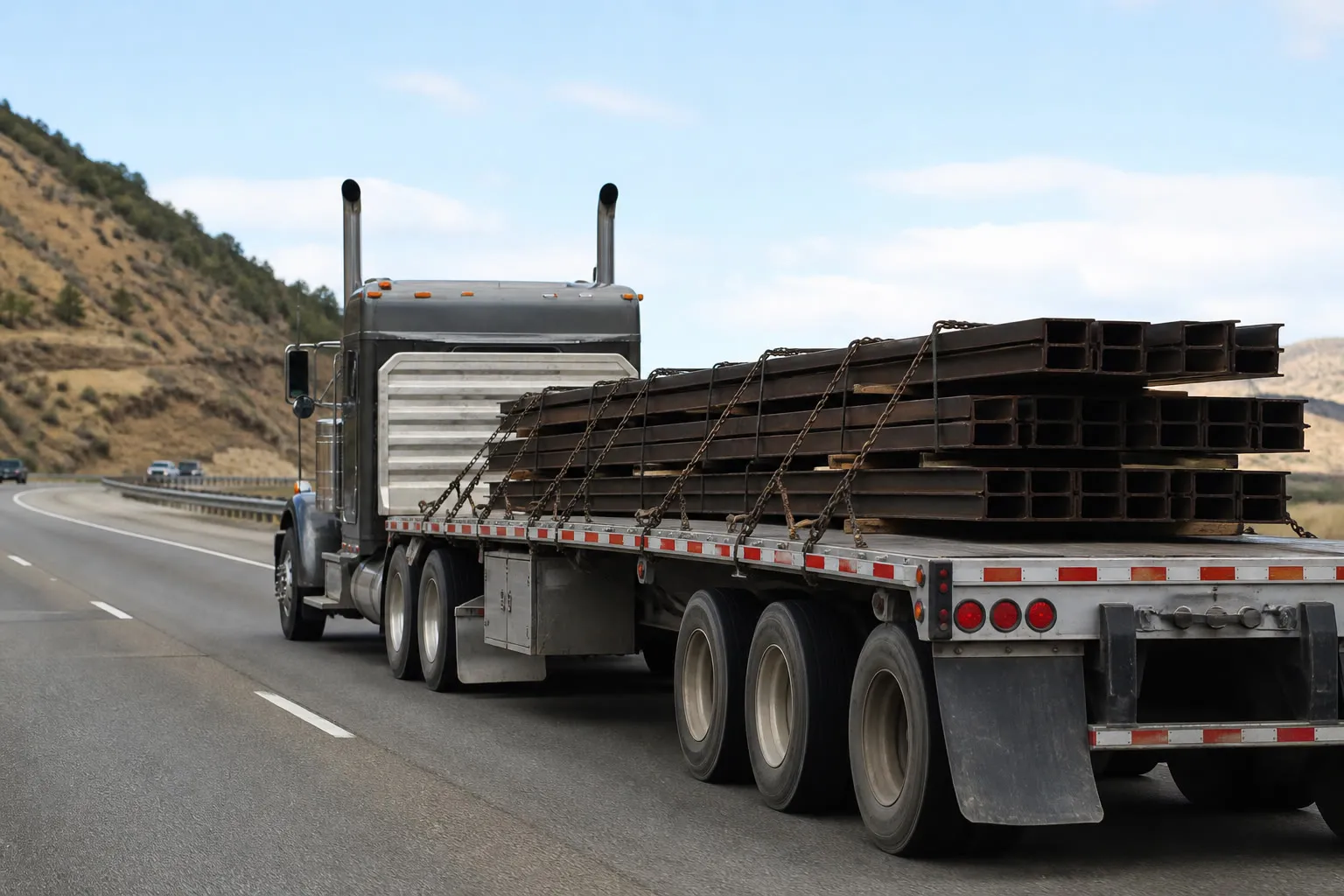

When an excavator, transformer, or beam package rolls under permit, the first thing other drivers usually notice is not the load itself—it is the yellow OVERSIZE LOAD sign, the red extremity flags, and the amber warning lights. Those markers are not decoration. They are state permit conditions that tell the traveling public where the combination sticks out and how to give it room.

Here is the planning fact that trips up shippers: the federal government does not issue oversize/overweight (OS/OW) permits, and it does not publish one national “sign and flag” table for every highway. The Federal Highway Administration (FHWA) is explicit that permits are a state option. What you put on the truck, trailer, and escort vehicles comes from each jurisdiction on the route—and from the paper (or electronic) permit you carry that day.

This Guide covers oversize load signs and flags, extremity marking, and amber/lighting rules for permitted OS/OW moves. It uses the federal baseline, FHWA Pilot/Escort Vehicle Operator (P/EVO) best-practice patterns, and verified examples from Florida and Texas. Escort counts and placement still belong in our separate Guide on when you need a pilot car; this post owns the signs, flags, and lights those escorts (and the load) must display.

Federal Baseline: States Own Signs, Flags, and Lights

On the Interstate system, FHWA publishes familiar weight frameworks—80,000 lb gross vehicle weight, 20,000 lb single axle, 34,000 lb tandem, plus the Federal Bridge Formula—and notes that states may permit nondivisible OS/OW loads beyond those baselines. Size permits (including overwidth) are likewise a state function. For equipment marking, that means:

• Federal: No single nationwide OVERSIZE LOAD sign size, flag color/size, or amber-light rule that replaces every state table.
• States: Issue the permit, set when signs/flags/lights are required, and often specify dimensions, placement, and escort-vehicle gear.
• Permit text wins: If the issued permit is stricter than a blog summary—including this one—follow the permit.

FHWA’s P/EVO certification materials reinforce the same theme: rules for pilot/escort operators and vehicles vary from state to state, but almost every state requires an Oversize Load sign on the escort unit, amber warning lights visible from a distance, and (in many jurisdictions) red or fluorescent flags. Treat FHWA P/EVO guidance as best-practice context—not a substitute for Florida’s FAC, Texas TxDMV tables, or any other state’s current conditions. Primary FHWA context: P/EVO course materials and the OS/OW permit overview.

What Shippers Mean by Signs, Flags, and Lighting

On a typical permitted move, three marking systems work together:

1. Warning signs — Usually yellow with black lettering reading OVERSIZE LOAD (some states also allow or require WIDE LOAD wording on escorts).
2. Flags — High-visibility markers at the corners of the vehicle and at the extreme ends of protrusions, projections, or overhangs.
3. Warning lights — Rotating, strobe, or flashing amber mounted so approaching traffic can see them from hundreds of feet away; night moves often add load-shape lighting.

Escort vehicles often carry their own roof or bumper OVERSIZE LOAD signs, amber beacons, radio, and spare signs/flags for the load. Civilian pilot-car thresholds are covered in the pilot car Guide; travel hours that decide whether night lighting applies are covered in daylight, holiday, and blackout rules.

Verified Example: Florida Signs, Flags, and Lights (Rule 14-26.012)

Florida’s movement conditions live in Fla. Admin. Code R. 14-26.012. If you originate near Sebastian or cross Florida on a multi-state corridor, build these into the quote—not as a morning-of surprise.

Flags (Florida)

Flags must be clean, high visibility, and at least 18 inches × 18 inches. Display them so they wave freely on all four corners of the vehicle and at the extreme ends of all protrusions, projections, or overhangs.

Warning lights (Florida)

Vehicles or loads exceeding 10 feet in width, 80 feet in length (or more than 3 feet of front overhang for self-propelled equipment), or 14 feet 6 inches in height shall have warning lights that:

• Are class 2 high-visibility rotating, strobe, or flashing amber warning lights; and
• Are mounted so as to be seen by all approaching traffic at a distance of at least 500 feet.

Nighttime movement (when authorized) adds more: law-enforcement escorts, warning lights that delineate the shape and size of the load, and trailer/load lighting consistent with the 49 C.F.R. lighting provisions Florida incorporates by reference.

Warning signs (Florida)

Required when the vehicle/load exceeds 10 feet wide, 80 feet long, or 14 feet 6 inches high. Each warning sign shall:

• Use black letters 12 inches high with a brush stroke not less than 1½ inches wide on a yellow background
• State “OVERSIZE LOAD”
• Measure not less than 7 feet long by 18 inches high
• Be bumper-mounted or roof-mounted (if one is roof-mounted, the other must be at the rear of the towed unit or load)

Voids may be cut so signs do not cover required lights or reflectors.

How Florida dimensions stack the gear

Width bands in Rule 14-26.012 show how marking and escorts climb together (escorts summarized only for context):

• Up to 10 ft wide: Flags required; daytime patterns per the rule
• Over 10 ft up to 12 ft: Flags, warning signs, and warning lights
• Over 12 ft: Same marking package, plus escort thresholds that scale with width
• Height over 14′6″: Flags, signs, lights, plus a lead escort with a height indicator
• Length over 80 ft: Flags, signs, and lights (escort counts climb at higher length bands)

Qualified Florida escort vehicles also display yellow OVERSIZE LOAD signs (black letters with minimum brush-stroke rules, visible front and rear), amber class 2 warning lights visible at 500 feet, and roof-rack flags (red or fluorescent orange, at least 18″ × 18″). Details belong in the permit packet and with the escort vendor.

Verified Example: Texas Escort & Equipment Marking (TxDMV)

TxDMV’s Escort and Equipment Requirements page is the clearest published Texas source for OVERSIZE LOAD / WIDE LOAD escort signs, amber lights, and overhang flags. Key verified points for general oversize permits (manufactured housing has separate tables):

Escort vehicle signs (Texas)

An escort flag vehicle must display a sign on the roof or on the front and rear with the words “OVERSIZE LOAD” or “WIDE LOAD.” Specs:

• Color: yellow background with black lettering
• Size: 5 to 7 feet in length, 12 to 18 inches in height
• Lettering: 8 to 10 inches high with a brush stroke at least 1.41 inches wide
• Visibility: visible from the front and rear while escorting
• Do not use the sign when not escorting the permitted load

Escort amber lights and overhang flags (Texas)

Escort flag vehicles need two flashing amber lights, one rotating amber beacon of not less than eight inches in diameter, or alternating/flashing blue and amber lights fixed to the roof—visible from all sides.

A vehicle transporting a load that extends beyond the vehicle’s sides or more than four feet beyond the vehicle’s rear must have 12-inch red flags marking the extremities of the load. Where lamps are required for rear overhang more than four feet, Texas also requires red lamps and reflectors visible at stated distances (including two red lamps visible at least 500 feet from the rear, plus side lamps marking maximum overhang).

TxDMV convoy notes also call for a rotating amber beacon or amber pulsating light (not less than eight inches in diameter) at the top rear of each permitted load in a convoy. Always reconcile convoy and manufactured-housing special rules with the permit type you actually hold.

Florida vs. Texas: Same Freight, Different Marking Math

Shippers coordinating multi-state moves should not assume one state’s sign kit covers the next:

• Flag size: Florida’s load flags are at least 18″ × 18″; Texas overhang extremity flags are published as 12-inch red markers for side/rear overhang cases.
• Sign wording: Florida load signs say OVERSIZE LOAD with fixed minimum dimensions; Texas escort signs may read OVERSIZE LOAD or WIDE LOAD within TxDMV’s size band.
• When lights kick in: Florida ties amber warning lights to width/length/height (and overhang) thresholds in Rule 14-26.012; Texas publishes detailed escort-vehicle light rules and separate overhang lamp requirements.
• Escort gear ≠ load gear: Escort roof signs and load bumper/rear signs are different line items. Budget both when the corridor needs escorts.

Every other state on the route is state-varies until you confirm current rules or read the live permit. Industry roundups are patterns, not law.

Practical Checklist Before the Truck Leaves the Yard

1. Lock loaded dimensions — Width, height, length, and overhang after the unit is on the chosen trailer. Brochure specs wreck sign and escort triggers; see how to measure an oversize load for a permit quote.
2. Map marking rules by state — Florida FAC, Texas TxDMV, then every other jurisdiction. Note OVERSIZE vs WIDE LOAD wording if both appear on the corridor.
3. Inspect the physical kit — Correct letter height, yellow/black contrast, flag size/color, amber visibility, and mounts that do not block required lamps or reflectors.
4. Match escorts to the permit — Counts and placement from the pilot-car Guide; radios, spare OVERSIZE LOAD signs, and height poles when the state requires them.
5. Plan night vs daylight — Night authority (if any) often demands shape lighting and law-enforcement escorts. Align with travel window rules.
6. Read the issued permit the morning of departure — Temporary conditions override yesterday’s assumption.

How Marking Ties Into Permits, Escorts, and Trailer Choice

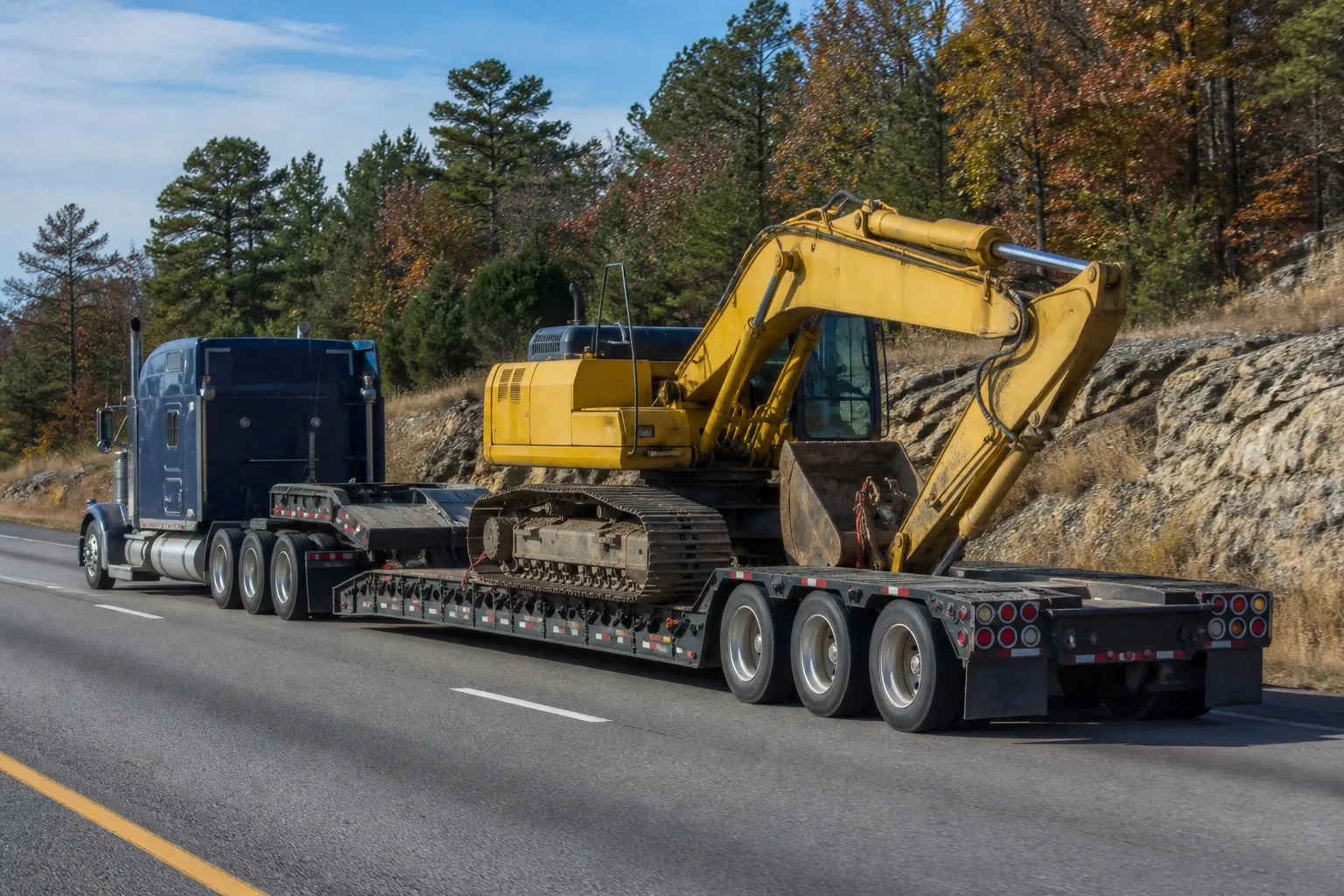

Signs and flags do not fix a bad route, but they do fail roadside checks when dimensions were wrong or the kit is undersized. Trailer choice still matters: an RGN vs. step-deck decision can change height and overhang enough to cross a Florida height-band light/sign trigger or a Texas overhang flag/lamp rule. For the bigger coordination picture, see permits & escorts, oversize & overweight, and heavy equipment hauling.

Get Marking and Permit Planning in One Quote

If you need a clear answer on oversize load signs and flags for a specific corridor—not a generic checklist—send loaded dimensions, weight, origin/destination, and timing. At Oversize Load Transport, Logi Transports LLC (Sebastian, FL — MC-1636889 / USDOT 4230991) builds permits, escorts, travel windows, and equipment marking into the plan before the truck is booked.

Call (864) 791-5644, email quotes@logitransports.com, use our contact page, or submit the Logi Transports quote request.

Bottom line: OVERSIZE LOAD signs, extremity flags, and amber lighting are state permit conditions, not a federal checkbox. FHWA confirms states issue OS/OW permits; P/EVO materials describe common best practices that still vary by jurisdiction. Florida Rule 14-26.012 spells out 18″ flags, 7′ × 18″ OVERSIZE LOAD signs, and amber lights at defined width/length/height triggers. Texas TxDMV publishes escort OVERSIZE LOAD / WIDE LOAD sign specs, amber beacon rules, and 12-inch red overhang flags. Measure the loaded unit, kit the truck and escorts to each state’s table, and let the issued permit have the final word.
